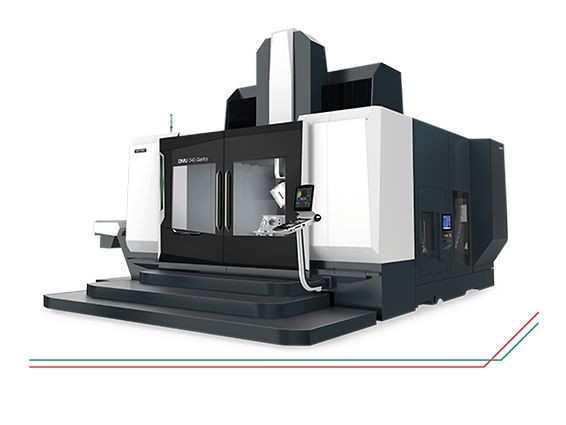

DMU 340 Gantry
Brand：DMG MORI
Photo credit: DMG MORI
Rating
(2)
4.5
Write a review
Landon M
／
A little pricey but it is good for our production line. I like the 5 axis head design.
George B.
／
Features
01Efficiency
Lower energy consumption through intelligent needs-based power units.
Gantry design with vertically moving cross beam with hydraulic weight compensation.
Fast innovative wheel type magazine with up to 243 tools with minimized footprint.
Gantry design with vertically moving cross beam with hydraulic weight compensation.
Fast innovative wheel type magazine with up to 243 tools with minimized footprint.
02Highest rigidity and dynamics up to 16.4 ft/s²
Thermosymmetrical construction
3-point support with an inherently stiff machine bed, no foundation required
High temperature stability standard with positioning accuracy down to 0.38 µin
Position accuracy down to 0.30 µin with accuracy pack option
Short and continuous throat depth of milling head (no ram design)
3-point support with an inherently stiff machine bed, no foundation required
High temperature stability standard with positioning accuracy down to 0.38 µin
Position accuracy down to 0.30 µin with accuracy pack option
Short and continuous throat depth of milling head (no ram design)
03Performance
High dynamics with feed speed up to 1,574.8 ipm
High feed power up to 11,240 lbf
Biggest spindle range in the market: powerMASTER motor spindle with up to 737.6 ft lb and torqueMASTER gear spindle with 1,327.6 ft lb
High feed power up to 11,240 lbf
Biggest spindle range in the market: powerMASTER motor spindle with up to 737.6 ft lb and torqueMASTER gear spindle with 1,327.6 ft lb
Specifications
X Travel (inch)
236.5
Y Travel (inch)
110.2
Z Travel (inch)
59.1
Table Loading Capacity (lbs)
66139
Table Length (inch)
173.2
Table Width (inch)
106.3
X Rapid Rate (ipm)
1,574.8
Y Rapid Rate (ipm)
1,574.8
Z Rapid Rate (ipm)
1,574.8
Tool Magazine
183
Spindle RPM
30000
Horse Power (HP)
33.5
×
